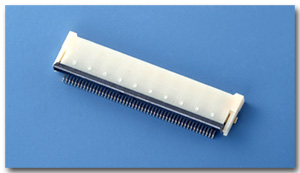

XF2H
|
|
Standard rotary backlock type
(0.5mm-pitch)
|
| * |
Lineup of 10 to 53-pin |
| * |
Applicable FPC thickness, t=0.3mm |
| * |
On-board profile of 2mm |
| * |
The backlock solution |
| * |
Double-sided contacts |
| * |
SMT terminals |
|
(PDF
for XF2H) |
|
|
| Description |
Product No.
Model |
Pins |
Pitch |
Height |
Thickness |
Pcs / Reel |
Memo |
FPC / FFC
Connector |
XF2H-1415 |
14 |
0.5mm |
2H |
0.3mm |
1500 |
Backlock Solution
Double-Sided Contacts |
| XF2H-2615 |
26 |
0.5mm |
2H |
0.3mm |
1500 |
| XF2H-3015 |
30 |
0.5mm |
2H |
0.3mm |
1500 |
| XF2H-3315 |
33 |
0.5mm |
2H |
0.3mm |
1500 |
| XF2H-3615 |
36 |
0.5mm |
2H |
0.3mm |
1500 |
| XF2H-4015 |
40 |
0.5mm |
2H |
0.3mm |
1500 |
| XF2H-4515 |
45 |
0.5mm |
2H |
0.3mm |
1500 |
| XF2H-5015 |
50 |
0.5mm |
2H |
0.3mm |
1500 |
|
|
|
|
