”»Features
: |
|
(1) |
Single
head terminal with single twist line (half-stripped). |
|
(2) |
Process
two cables in one time. |
|
(3) |
The
terminal fabricated meets ISO standards. |
|
(4) |
Attached
with terminal sensor (detector). |
|
(5) |
Free
change in twist direction. |
|
(6)
|
Integrated
with cable feeder. |
|
”»
Specifications |
|
Model |

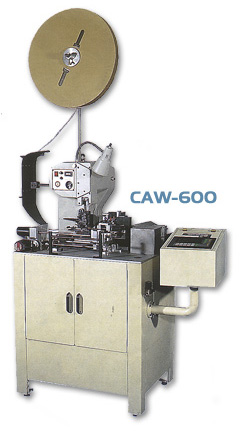

CAW-600 |
|
Dimension |
1030(L)
x 910(W) x 1650(H)mm |
|
Power |
Step
2610x4, Step PF569x1 |
|
Power
Source |
110V/220V |
|
|
|
|
”» |
Working
range : |
1.0£rmm~3,0£rmm
The shortest cable to be processed is 55mm (without
terminal) or 65mm (with terminal). |
|
”» |
Working speed : |
3,120
cable terminals per hour (at 60mm length). |
|
